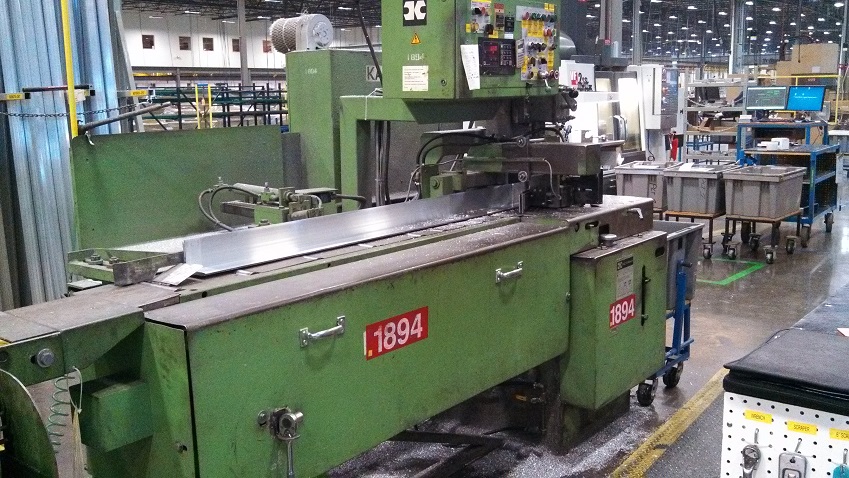

KALTENBACH MODEL SKL400NA AUTO FEED NON-FERROUS COLD SAW
 SN: 110305

Specifications:
Saw Blade Diameter: 15-3/4"
Cutting Capacity at 90 Degrees:
     Round: 5-7/64"
     Square: 4-3/4" x 4-3/4"
     Rectangle: 11.8" x 1.8"
Cutting Speeds (2 Ranges): 1500/3000 RPM
Blade Speeds (Surface Feet/Minute): 5,750/11,500 SFPM
Saw Blade Feed Rate: 0 - 45 IPM Variable
Rapid Return of Saw Blade: 120 IPM
Miter Cutting: +/- 90 Degrees
Main Motor: 5 HP
Feed Length: 0.4" - 80" (Double Stroke)
Material Feed Rate: 33 FPM
Approximate Overall Dimensions: 120" x 48" x 70"H
Approximate Weight: 4,200 Lbs.

Equipped With:
PLC Control for Cut Length and Parts Count
High Speed for Non-Ferrous Material
Auto Material Feed  w/Double Stroke Option
Miter Cut Capability
Coolant
