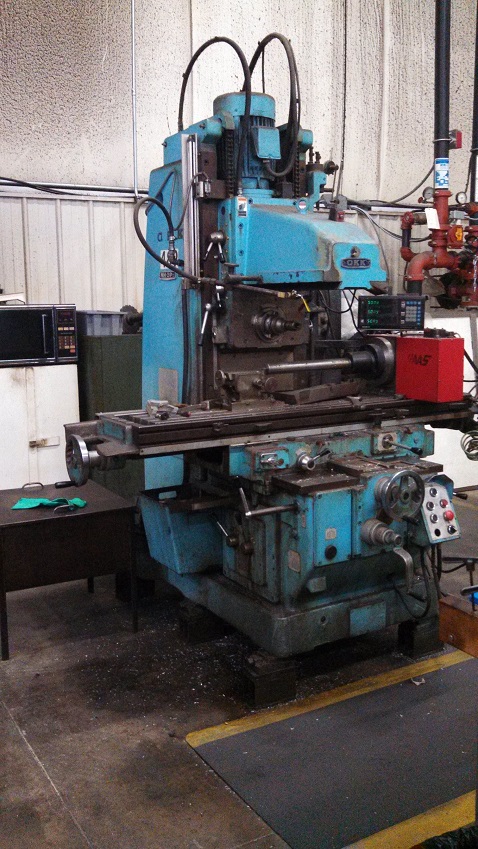

OKK MODEL MH-3PII HORIZONTAL BED-TYPE MILLING MACHINE
SN: 1550 (1978)

        Specifications:

	Spindle Taper: #50
	Table Size: 15" x 65"
	Longitudinal Travel: 36-1/4"
	Cross Travel: 13-3/4"
	Max Vertical Travel of Head: 17"
	(12) Spindle Speeds: 45 - 1600 RPM
	(12) Power Feeds to Table-Saddle
	Main Motor: 10 HP
	Feed Motor: 2 HP
	Coolant Motor: 1/6 HP
	Machine Weight: 9,250 Lbs.
	Floor Space Dimensions: 72" x 122"

	Equipped With:

	3-Axis Digital Readout
	Rapid Power Traverse
	Work Light
	Arbor/Arbor Support
	Misc. Tooling
