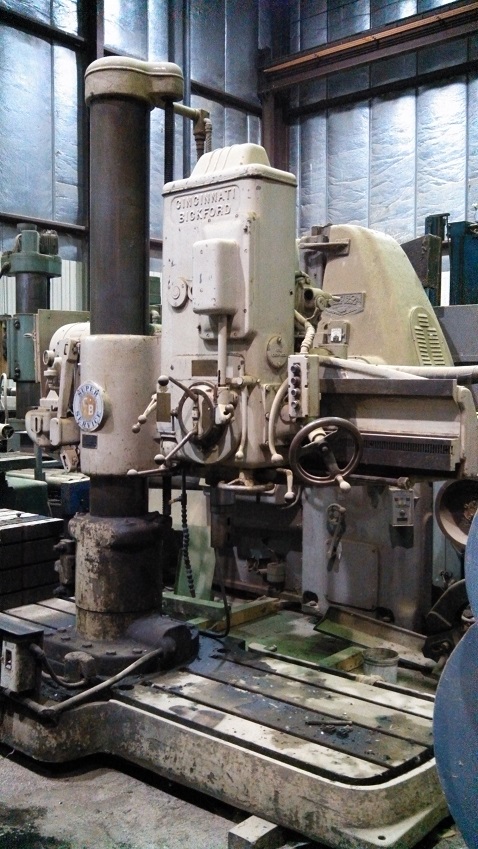

CINCINNATI BICKFORD 4' X 11" RADIAL DRILL SN: 2E926 Specifications: Arm Length: 48" Diameter of Column: 11" Morse Taper: #4 (12) Spindle Speeds: 35-1600 RPM (6) Power Down Feeds: .006-.030 IPR Main Drive Motor: 5 HP 220/440/3/60 Maximum Distance Spindle to Base: 75" Minimum Distance Spindle to Base: 15" Quill Diameter: 4.25" Quill Travel: 12.5" Equipped With: Power Clamping Power Elevation Coolant Double Base Box Table
